Introducing

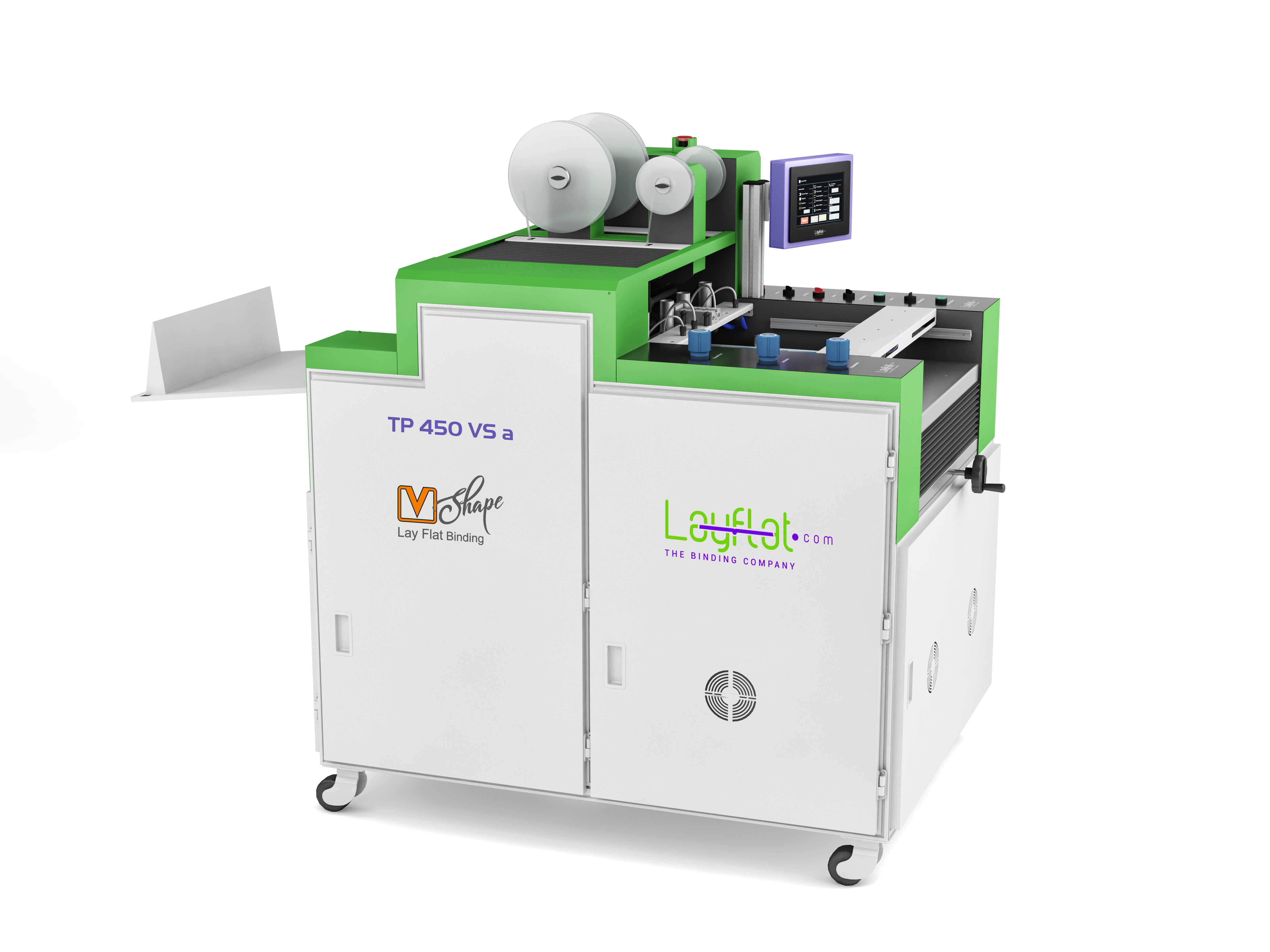

TP 450 VS a
TP 450 VS a is a multi-functional Slit and Strip Binding machine which is used to give photo books made of special media, a completely LayFlat opening with V-Shape Technology. This machine solves the problem that typically occurs when laminating photo books that have unique surfaces such as Texture Paper, Metallic Paper, Luster Paper etc., which is that laminating such unique media reduces its charm and richness. TP 450 VS a solves this problem by slitting and taping the spine along with strengthening and adding flexibility to it. Auto feeder can feed the media as per the programmed, and the slitting distance from the spine can be adjusted. TP 450 VS a also comes with Two Slitting device for Multiple ups books in single page, a Paper Guide to help set and maintain distance from the spine and create a V-Shape, along with a Digital Display Panel to set the slitting distance.
Multi-functional Slit & Strip Binding machine for special media photobooks Speed: 450 sheets/hr
Touch Panel Display. 7”(Inch) Touch Control Display Easy & User-friendly touch control program for V-Shape Layflat Binding
Auto Feeding.
Auto Feeding: Electro Pneumatic feeder is specially
designed for inserting one sheet at a time.
TWO Silting Device
One of the two Slitting device (cutter) is fixed and the other is
adjustable in between the paper width.
Two Tape Rolls :
The adhesive tape is specially designed, to ensure proper holding of
the
joints and resulting in accurate binding.
Auto Indication alerts, before the tape roll is about to finish.
Tape Finish :
Gloss & Luster Finished tapes for the various types of media
Auto Cut (Sheet Separator)
Built in automatic cutting system for cutting tapped sheets
Two tape rolls with gloss and luster finish that are designed for accurate binding;

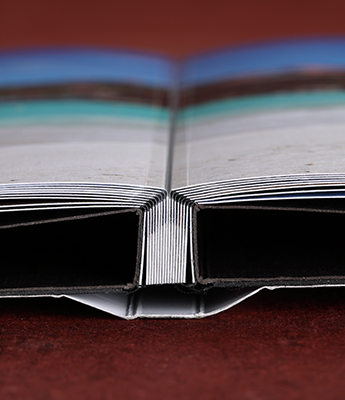

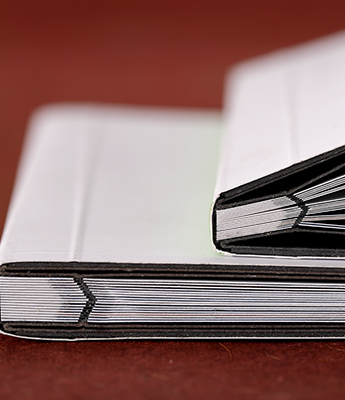

V-Shape Process
Our patented V-Shape Technology to arrange the paper in V-Shape for
lay
flat opening
TP 450 VS a is specially used for photobooks that consist of special media such as Texture Paper, Metallic Paper, Luster Paper etc. It is a multi-functional Slit and Strip Binding machine which creates a complete Layflat opening for such photobooks using our patented V-shape technology. TP 500 B comes with an Auto Feeder, a Paper Guide, and a Digital Display Panel to enable accuracy in the slitting and taping process.
