VS 350 B

Integrated binding technology

Introducing

VS 350 B

*All-in-one photobook binding system

Description

Binding Machines for Duplex Prints

VS 350 B is a compact machine which takes care of all the processes involved in photobook binding i.e. window cutting, creasing, hole-punching, and stapling. With an in-built digital microcontroller, VS 350 B can pre-define each project and can help you save it for later use. The machine also has the unique feature of creating two creases on a single page, specially used for creasing the first and last pages of the photobook. Additionally, it offers the highly accurate first-of-its-kind V-Shape hole-punching and step-binding for a complete LayFlat photobook opening.

Description

Specifications

machine image

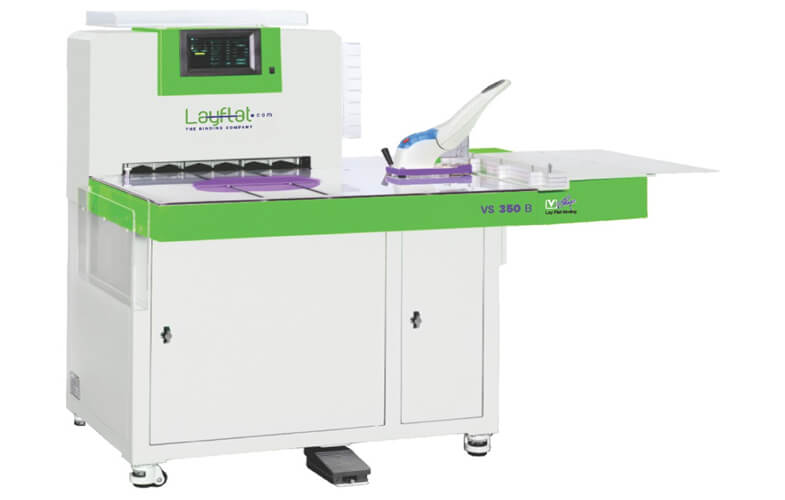

VS 350 B

Pre-programmable all-in-one machine for V-Shape Binding
Speed: 350 sheets per hour

  • 19” - 19” (482mm - 482mm)
  • 6” - 8” (152mm - 203mm)
  • 8mm (stapler & media ristruction)
  • 350 sheets per hour
  • 220V 50HZ Single phase
  • 500W

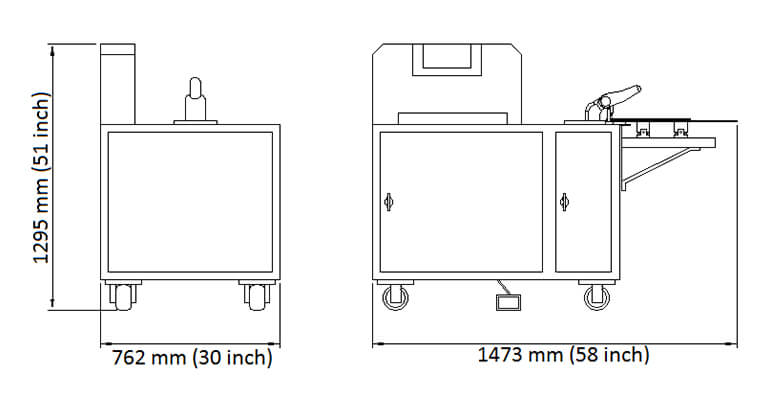

  • 1473 (L) x 762 (W) x 1295 (H) mm
  • 210 kg
  • 0.5 - 0.70MPa 90L/min

Details

Output Variation Output Variation

Key Features

  • Digital Microcontroller with a large LCD touch screen to pre define & save each project;

  • Innovative Patented technology for V-Shape lay flat binding;

  • Two binding options are available window cutting & creasing, with hole punching & stapling;

  • 99 programs can be stored with precise memory of window cutting, creasing & hole punching measurement;

  • Unique feature of making two creases on a single page;

The VS 350 B has a digital microcontroller with a large LCD touchscreen, having the ability to pre-define and save projects for future use. It can hold up to 99 programs in memory, including precise details for window-cutting, creasing, and hole-punching measurements. This machine also offers the patented V-Shape LayFlat binding technology and the unique feature of creating two creases on a single page.

Machine Details
