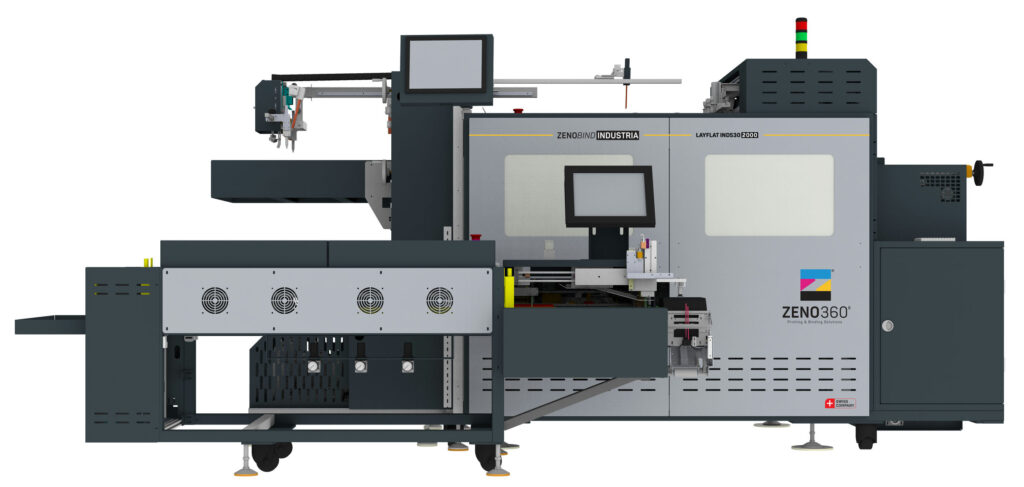

The Layflat IND530-2000
Fully automatic book block system!Layflat IND530-2000 is an all-in-one integrated system which can complete the tasks of automatic feeding, creasing, folding, gluing, and assembling. Its automatic paper alignment system and user-friendly touchscreen, make it easy to operate. It offers flexible production for different sizes. The LAYFLAT IND530-2000 comes with the hallmark LAYFLAT binding technology as well as Hotmelt gluing technology which ensures faster delivery at a cheaper price.
Key Features
- All in one system: Integrated auto feeding, gluing, assembling units and inline automatic book press.
- High speed: 2000 cycles/hour.
- Industrial grade: can run 24 hours per day, large volume paper and cardboard stacker.
- Large size: up to 530 mm X 915mm (20.8" x 36").
- Fully automatic: with bar code scanning system, don't need operator intervention.
- Layflat binding technology
- Hotmelt gluing technology: cheaper cost and faster delivery
Specifications
- Book block height : 203mm-530mm (8”-21”)
- Book block width (open) : 355mm-915mm (14”-36”)
- Maximum thickness of book block : 50mm
- Cardboard : With or without
- Thickness of paper : 0.15mm-0.3mm
- Thickness of cardboard : 0.35mm-1mm
- Glue : Hot melt
- Speed: 2000 cycles/hour
- Power Supply : 220V 50HZ Single phase
- Maximum Power Consumption : 2950 W
- Machine dimension : 3.15m (L) x 2.1m (W) x 1.5m (H)
- Weight : 1,600 kg
- Air Compressor : 0.65-0.8mpa, >200L/min
