LF 2000 All-In

Book Block Machine from Single Sheet


LF 2000 All-In

*All-in-one integrated fully automatic system


LF 2000 All-In is a high speed fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make promotional books not only by gluing paper back-to-back but also by inserting cardboard between sheets. It is all in one station, creasing, folding and inline automatic book press are included, it is designed for high-speed photobook production.



machine image

LF 2000 All-In

High speed fully automatic book block system which produces book blocks from single sheets..Speed: 2000 sheets per hour

  • 8”‐13” ( 203mm‐330mm)
  • 14”‐29.5” ( 355mm‐750mm)
  • 50mm
  • With or without
  • 0.35mm ‐1mm
  • 0.15mm‐0.3mm
  • Hotmelt
  • 2000 cycles /hour
  • 220V 50HZ Single phase
  • 2700W

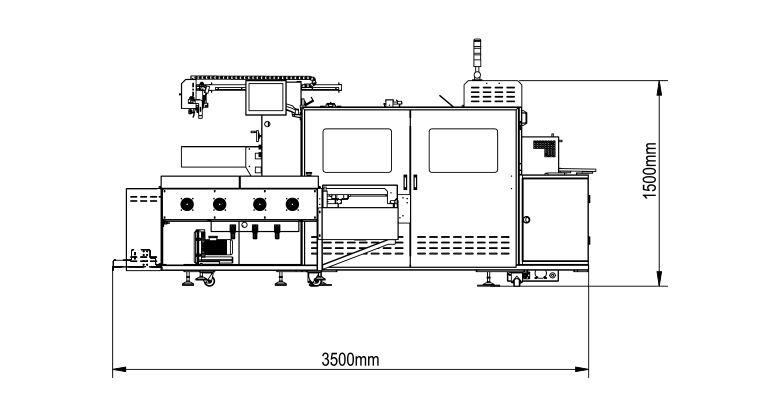

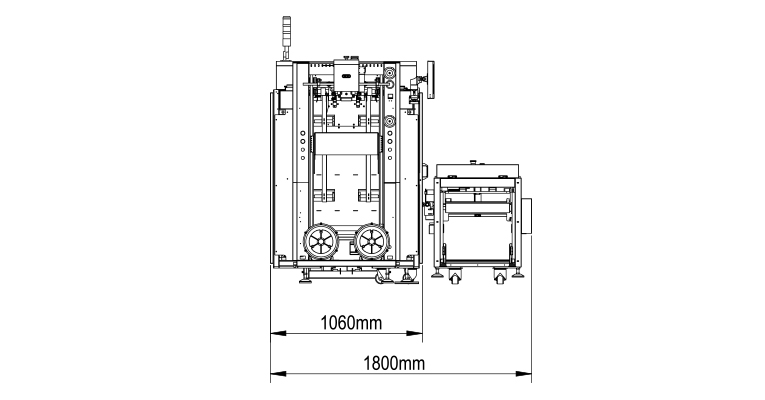

  • 2950 (L) x 1800 (W) x 1500 (H) mm
  • 1500kg
  • 0.65 - 0.8MPa 200L/min


Output VariationOutput Variation

Key Features

  • All in one system : Integrated auto feeding, gluing, assembling units and inline automatic book press;

  • High speed : 2000 cycles/hour.

  • Industrial grade : can run 24 hours per day, large volume paper and cardboard stacker.

  • Fully automatic : with bar code scanning system, don’t need operator intervention.

  • LayFlat binding technology.

  • Hotmelt gluing technology : cheaper cost and faster delivery.

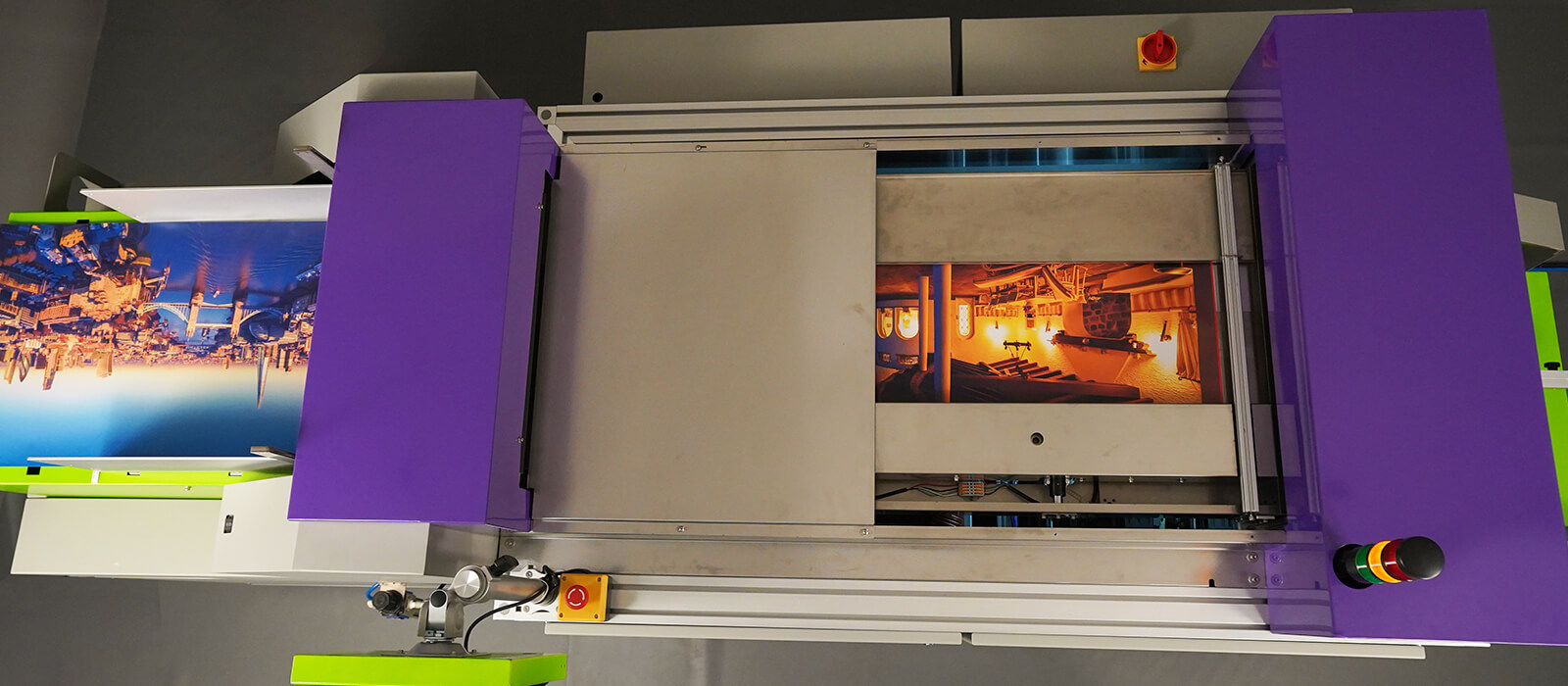

Machine Details
Machine Details
