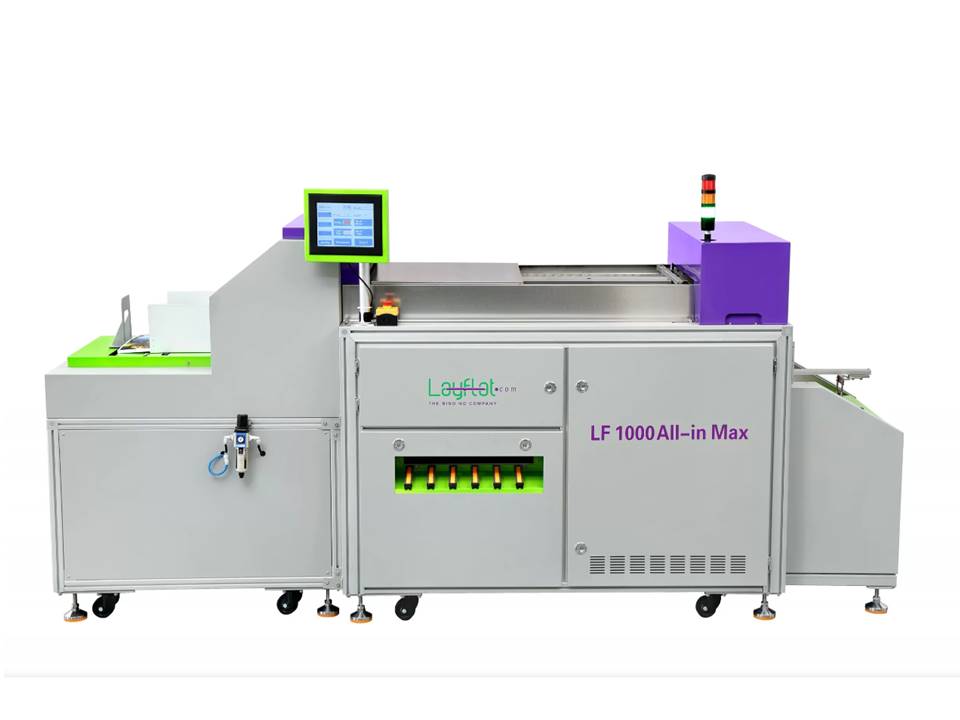

LF1000 Side View

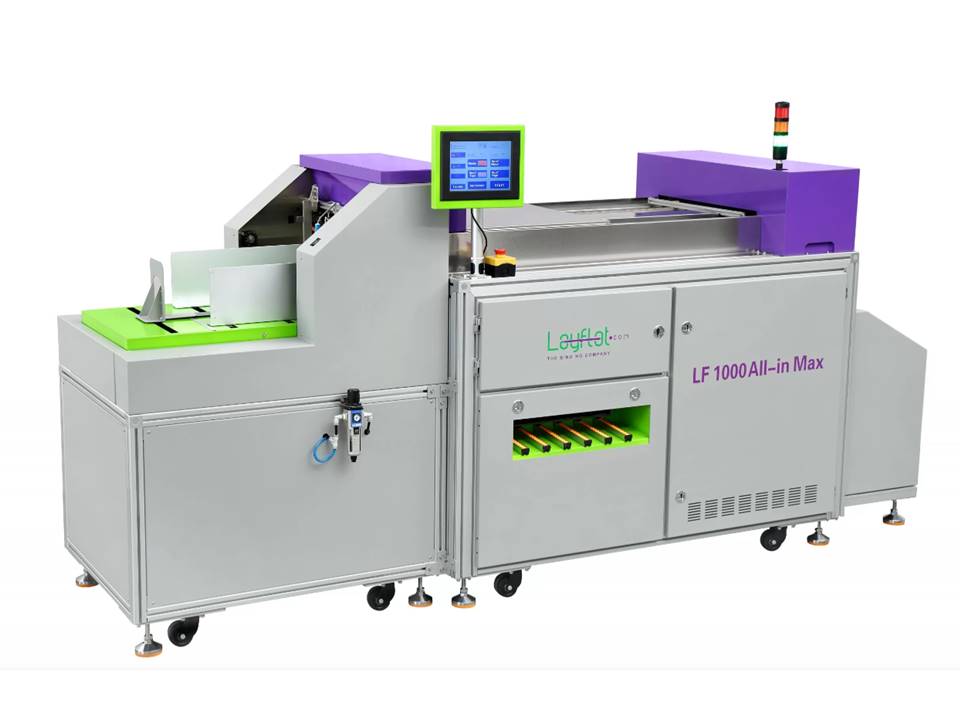

LF1000 slight side view
LF1000 with book block

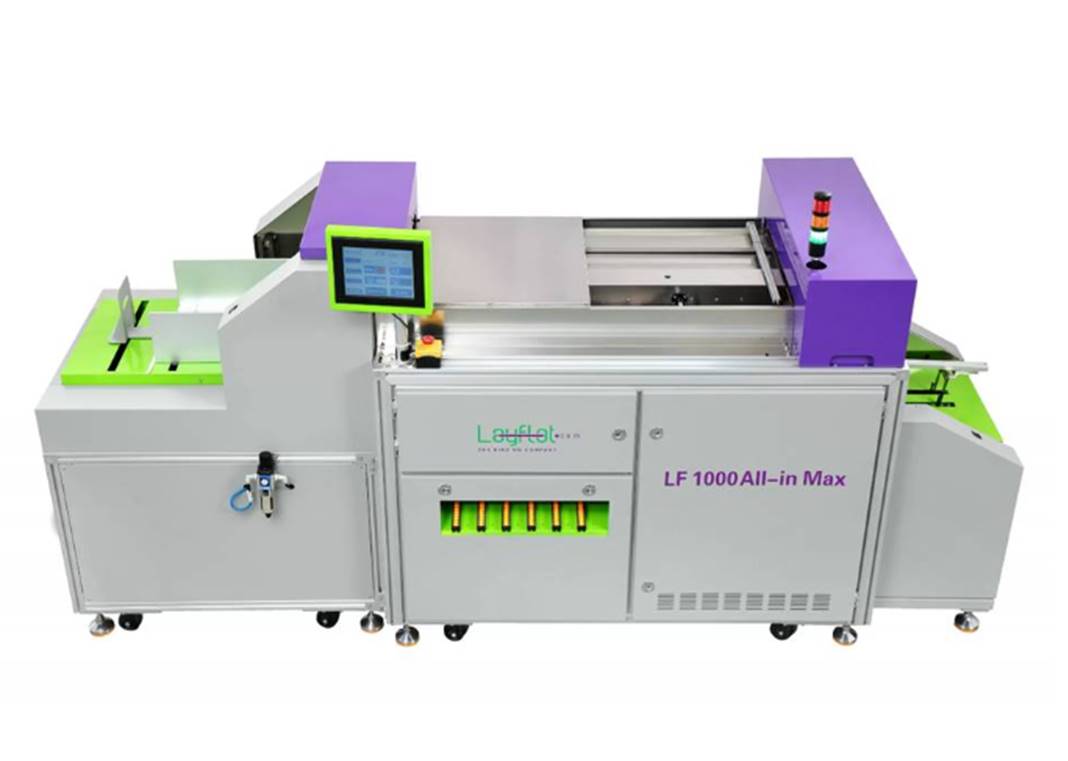

LF1000 Top View

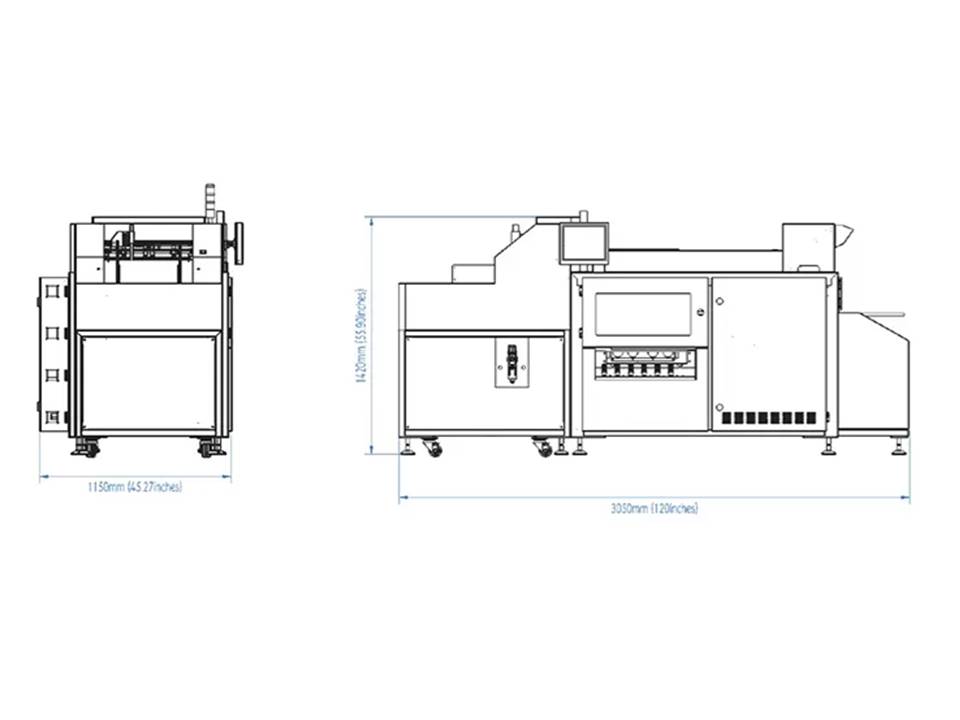

LF1000 Specs & Schematics
THE LAYFLAT – LF 1000 ALL-IN-ONE MAX

Binding Machines for Simplex Prints

LF 1000 All-in-One MAX is a fully automatic book block system which can produce LayFlat book blocks from single sheets. It is an all-in-one machine which includes a creaser and a folder. It creates photobooks by gluing papers

back-to-back as well as inserting cardboard in between sheets. This machine is ideal for creating professional photobooks where high speed is a priority.

Key Features

  • All in one system: Integrated auto feeding, creasing, folding, spinning pressing, gluing and assembling units;
  • Automatic paper alignment system;
  • Auto feeder for sheets and cardboard;
  • Easy to operate via touch screen;
  • Flexible production for different sizes: 152 mm x 152 mm (6” x 6”) to 460 mm x 460 mm (18” x 18”);
  • LayFlat binding technology;
  • Hotmelt gluing technology: cheaper cost and faster delivery;

The LF 1000 All-in MAX is an all-in-one integrated system which can complete the tasks of automatic feeding, creasing, folding, spinning pressing, gluing, and assembling. Its automatic paper alignment system and user-friendly touchscreen, make it easy to operate. It offers flexible production for different sizes. The LF 1000 All-in MAX comes with the hallmark LayFlat binding technology as well as Hotmelt gluing technology which ensures faster delivery at a cheaper price.



Book Block Height:
152 mm – 460 mm(6 inches – 18 inches)

Book Block Width:
(open)305 mm – 915 mm(12 inches – 36 inches)

Max. Thickness of Book Block:
50 mm

Paper Thickness:
0.15mm – 0.3mm

Cardboard Thickness:
0.35mm – 1 mm

Cardboard:
With or without

Gluing Technology:
Hotmelt

Speed
1000 sheets/hour (without cardboard),
500 sheets/hour (with cardboard)

Air Compressor
0.6 – 0.7 mpa, >180L/min

Power Supply
220V 50 Hz

Max. Power Consumption
2000 W

Machine Dimension:
3050 mm(L) x 1150 mm(W) x 1420 mm(H)

Weight (approx.):
750 kg.

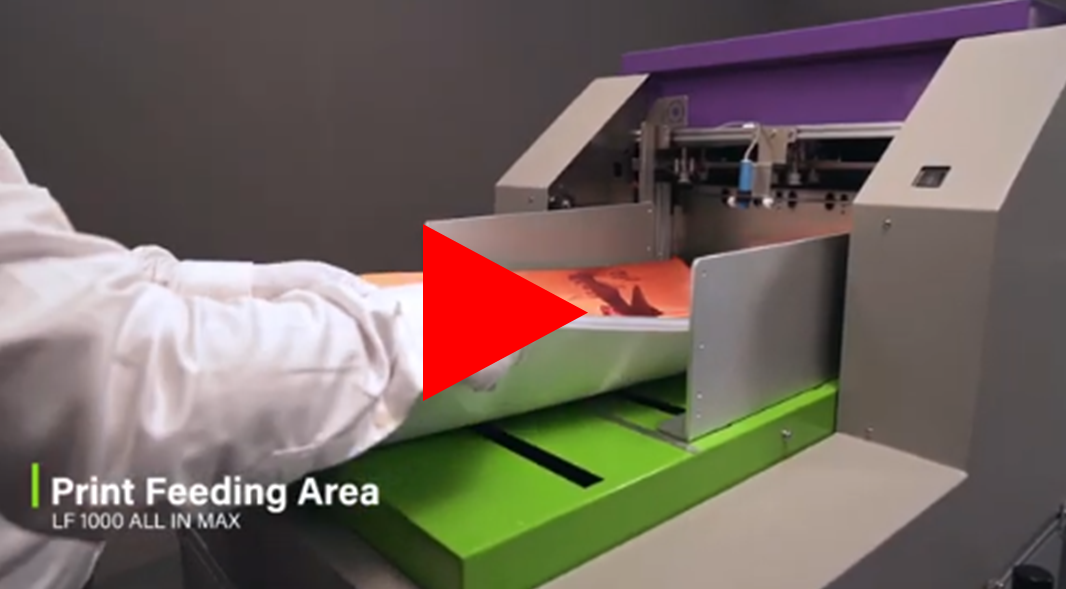

Click to See the LF1000 All-In-One in Action



Fully automatic book block system  producing LayFlat book blocks from single sheets. - the creaser and a folder creates photobooks by gluing papers
back-to-back as well as inserting cardboard in between sheets

Related Products
There is a Layflat solution that will fit your business needs - check out these related Layflat products below:

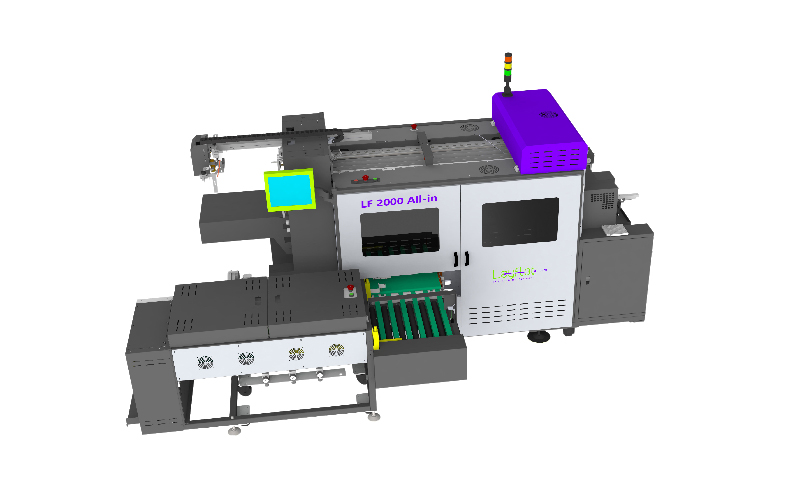

Layflat-LF 2000
All-in-one MAX
Photobook Machine

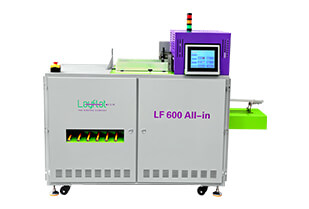

Layflat-LF 600
All-in-one MAX
Photobook Machine

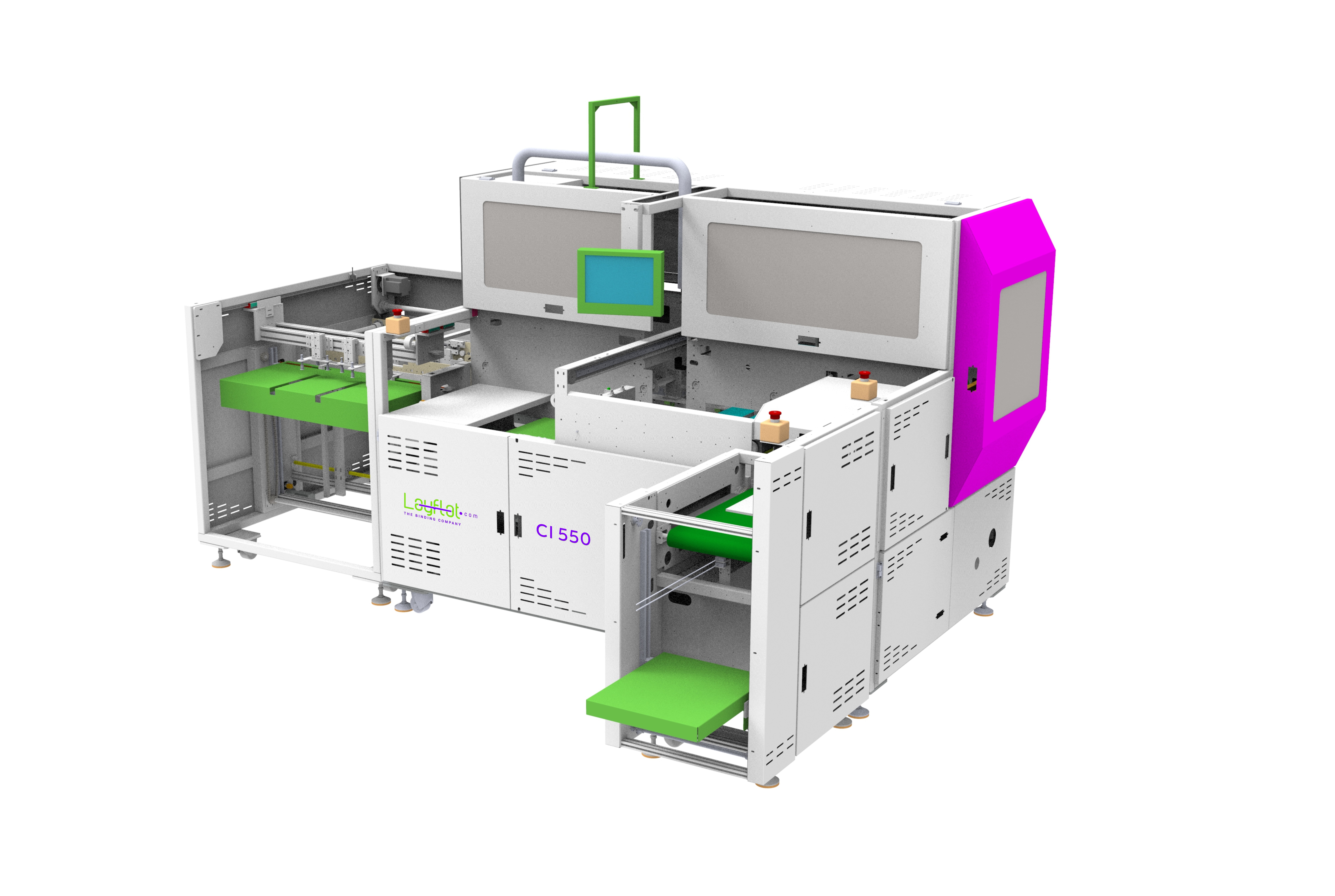

 Layflat-CI550
