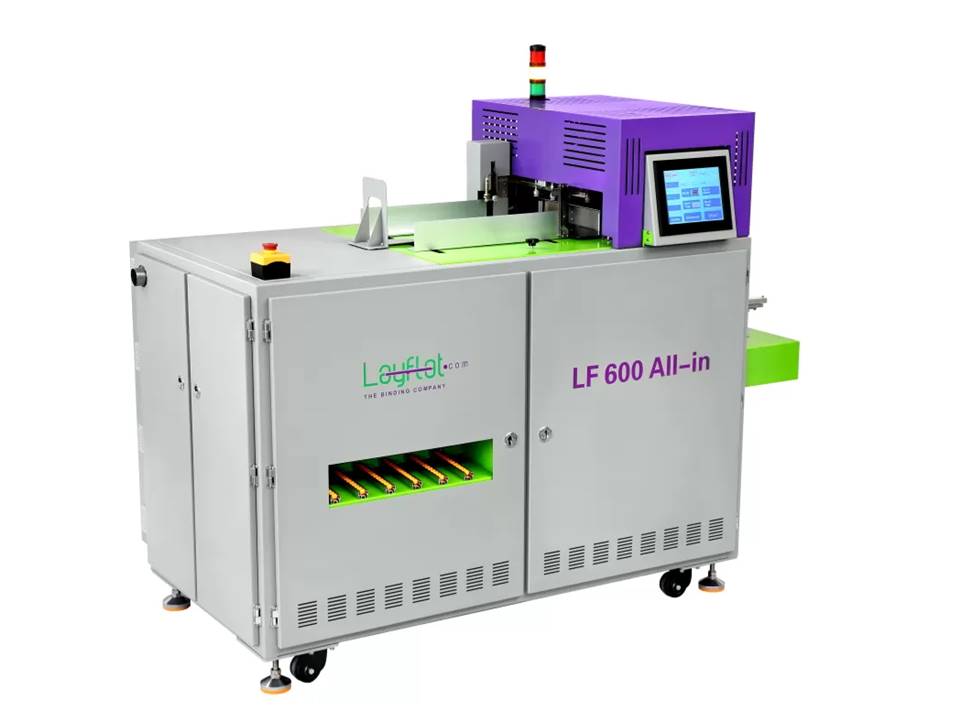

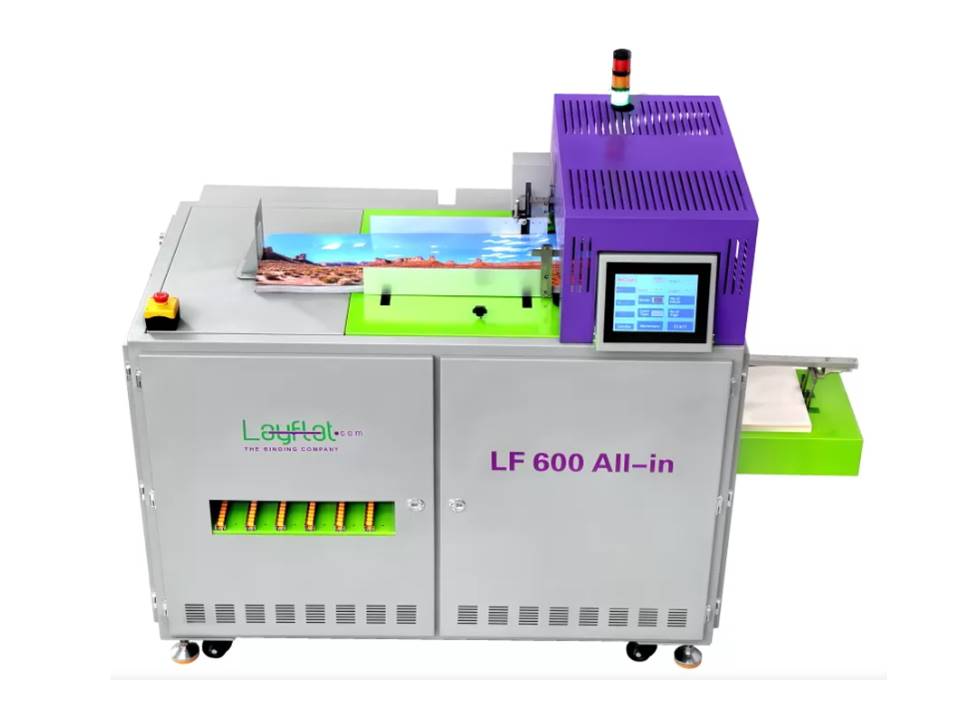

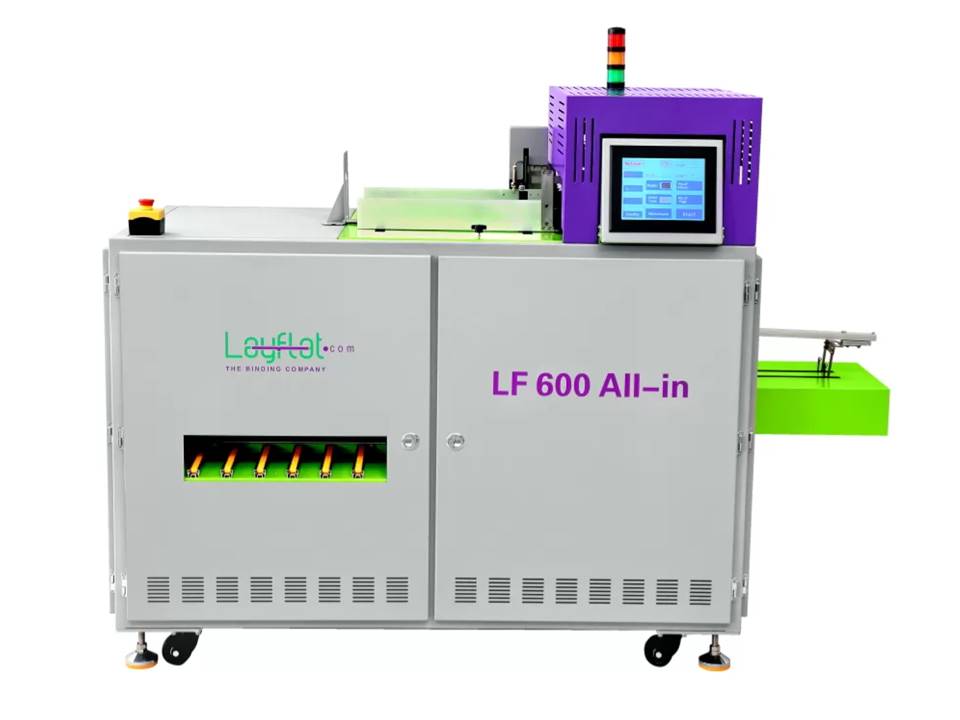

THE LAYFLAT – LF 600 ALL-IN-ONE
High-speed integrated system
THE LAYFLAT – LF 600 ALL-IN-ONE MAX PHOTOBOOK MACHINE
Binding Machines for Simplex Prints
LF 600 All-in Max is a fully automatic book block system which can produce LayFlat book blocks from single sheets. It is an all-in-one compact machine which includes a creaser and a folder. It creates photobooks by gluing papers
back-to-back as well as inserting cardboard in between sheets.
Key Features
- All in one system: Integrated auto feeding, creasing, folding, spinning pressing, gluing and assembling units;
- Easy to operate via touch screen;
- Flexible production for different sizes: 152 mm x 152 mm (6” x 6”) to 330 mm x 460 mm (13” x 18”);
- LayFlat binding technology;
- Hotmelt gluing technology: cheaper cost and faster delivery;
The LF 600 All-in is an all-in-one integrated system which can complete automatic feeding, creasing, folding, spinning pressing, gluing, and assembling. It has a user-friendly touchscreen, making it easy to operate. It offers flexible production for different sizes. The LF 600 All-in comes with the hallmark LayFlat binding technology as well as Hotmelt gluing technology which ensures faster delivery at a cheaper price
Book Block Height:
152mm – 330mm (6” - 13”)
Book Block Width:
(open)305 mm – 915 mm(12 inches – 36 inches)
Max. Thickness of Book Block:
50 mm
Paper Thickness:
0.15mm – 0.3mm
Cardboard Thickness:
0.35mm – 1 mm
Cardboard:
With or without
Gluing Technology:
Hotmelt
Speed
600 sheets/hour (without cardboard),
300 sheets/hour (with cardboard)
Air Compressor
0.65 – 0.8 mpa, >200L/min
Power Supply
220V 50 Hz
Max. Power Consumption
2000 W

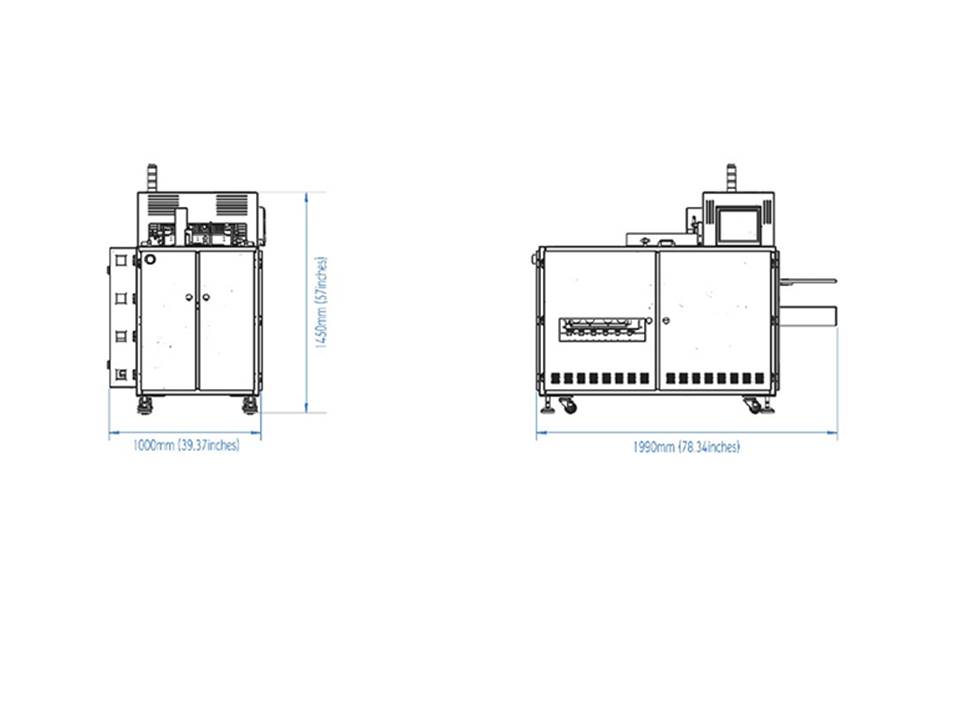

Machine Dimension:
1990 mm(L) x 1000 mm(W) x 1450 mm(H)
Weight (approx.):
400 kg.
Click to See the LF600 All-In-One in Action
Fully automatic book block system producing LayFlat book blocks from single sheets. - the creaser and a folder creates photobooks by gluing papers
back-to-back as well as inserting cardboard in between sheets
Our Technology
Click here to learn why LayFlat's Technology is superior
Related Products
Fully automatic book block system producing LayFlat book blocks from single sheets. - the creaser and a folder creates photobooks by gluing papers
back-to-back as well as inserting cardboard in between sheets
Our Technology
Click here to learn why LayFlat's Technology is superior
Related Products
There is a Layflat solution that will fit your business needs - check out these related Layflat products below:
 |
 |
 |
| Layflat-LF 2000 All-in-one MAX Photobook Machine |

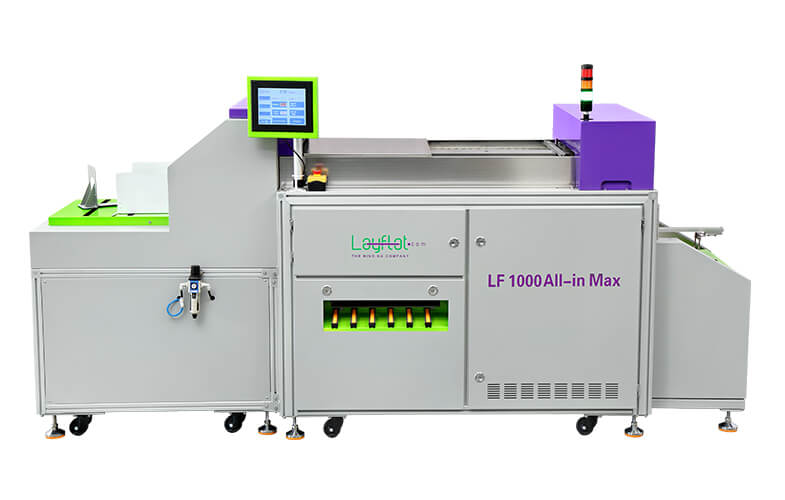

Layflat-LF 1000 All-in-one MAX Photobook Machine |
