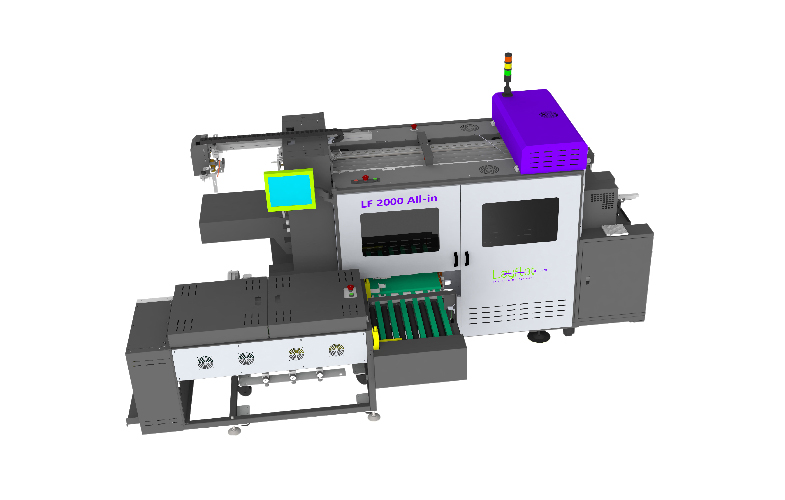

LF2000 All-in-one Unit
LF-2000 All-in-one Book Examples
LF-2000 All-in-one Books

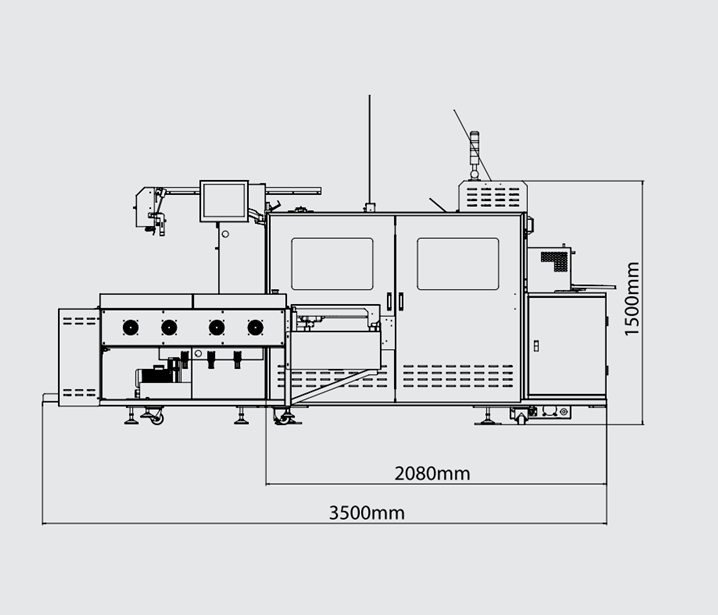

LF1000 Specs & Schematics

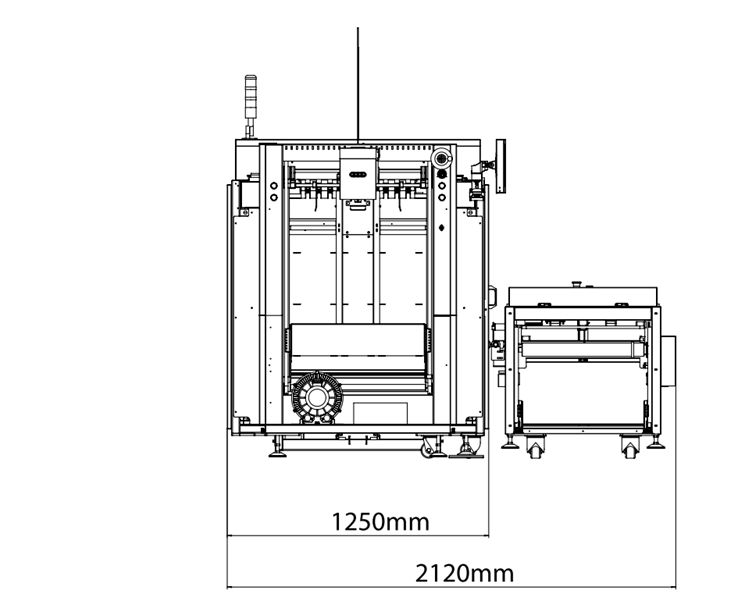

LF1000 Specs & Schematics
LF1000 Specs & Schematics
THE LAYFLAT – LF 2000 ALL-IN-ONE MAX PHOTOBOOK MACHINE



LF 2000 All-In-One Max is a high speed fully automatic book block system which produces LayFlat book blocks from single sheets. It can make promotional books not only by gluing paper back-to-backbut also by inserting cardboard between sheets. It is all in one station, creasing, folding and inline automatic book press are included it is high speed and good for professional promotional books.

Key Features

  • All in one system: Integrated auto feeding, gluing , assembling units and online presser;
  • High speed: 2000 cycles/hour;
  • Industrial grade: can run 24 hours per day, big volume paper and cardboard stacker;
  • Big size: up to 530mm*915mm;
  • Fully automatic: with bar code scanning system, don’t need operator intervention;
  • Layflat binding technology;
  • Hotmelt gluing technology: cheaper cost and faster delivery;





Book Block Height:
height8”‐21”(203mm‐530mm)

Book Block Width:
(open)14”‐36”(355mm‐915mm)

Max. Thickness of Book Block:
50 mm

Paper Thickness:
0.15mm – 0.3mm

Cardboard Thickness:
0.35mm ‐1mm

Cardboard:
With or without

Gluing Technology:
Hotmelt

Speed
2,000 sheets/hour

Air Compressor
0.65 – 0.8MPa 200L/min /min

Power Supply
220V 50HZ Single phase

Max. Power Consumption
2950 W

Machine Dimension:
3,150 (L) x 2,100 (W) x 1,500 (H) mm

Weight (approx.):
1,600 kg.





Click to See the LF2000 All-In-One MAX in Action
at Printing United Show 2022 Las Vegas, USA


LF 2,000 All-in-one  at Printing United Show 2022 Las Vegas, USA

The Layflat LF 2000 All-In Max is a high speed fully automatic book block system which produces Lay Flat book blocks from single sheets.
It can make promotional books not only by gluing paper back-to-back but also by inserting cardboard between sheets.
It is all in one station, creasing, folding and inline automatic book press are included.
 It is high speed and good for professional promotional books.
